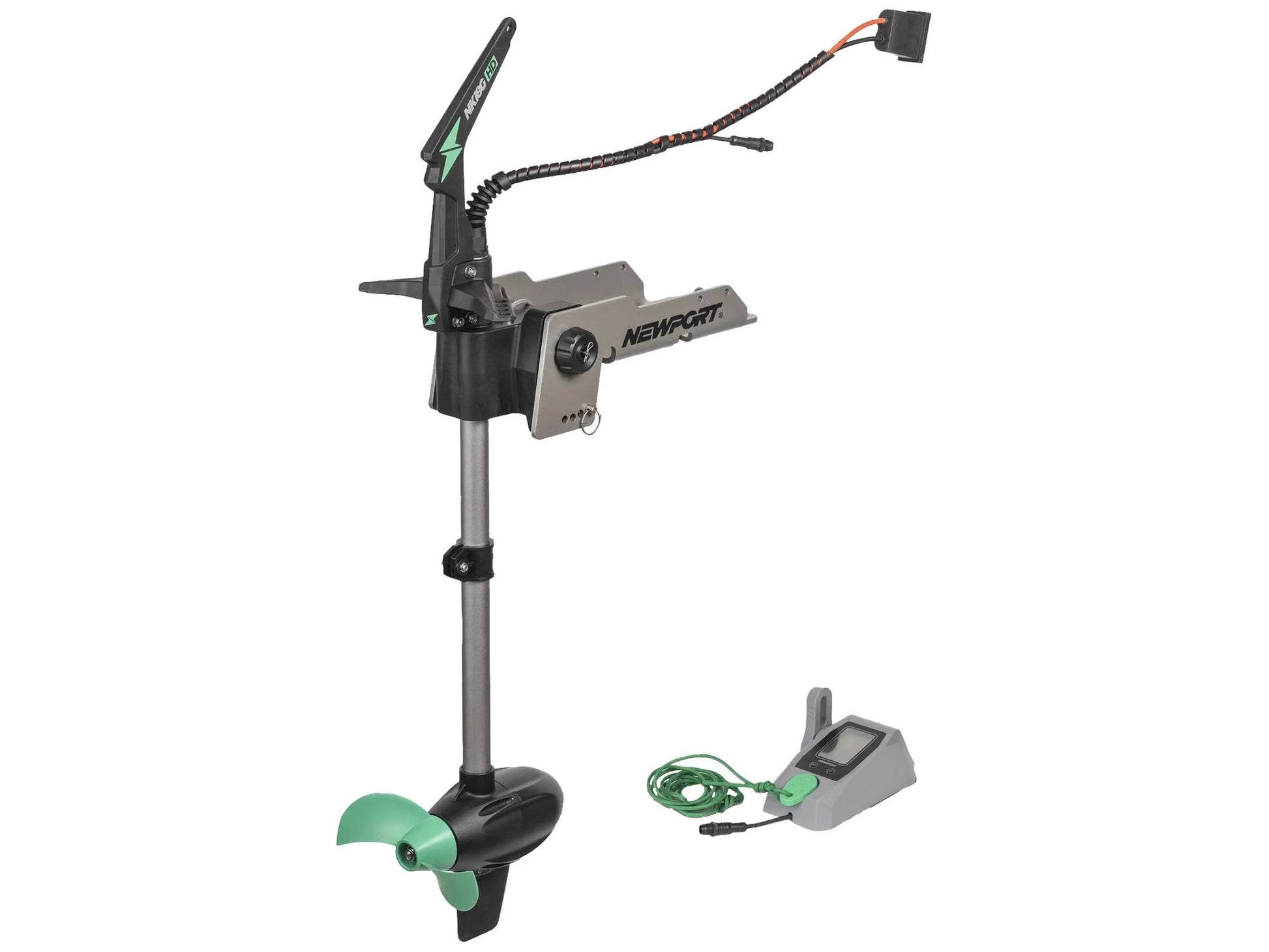

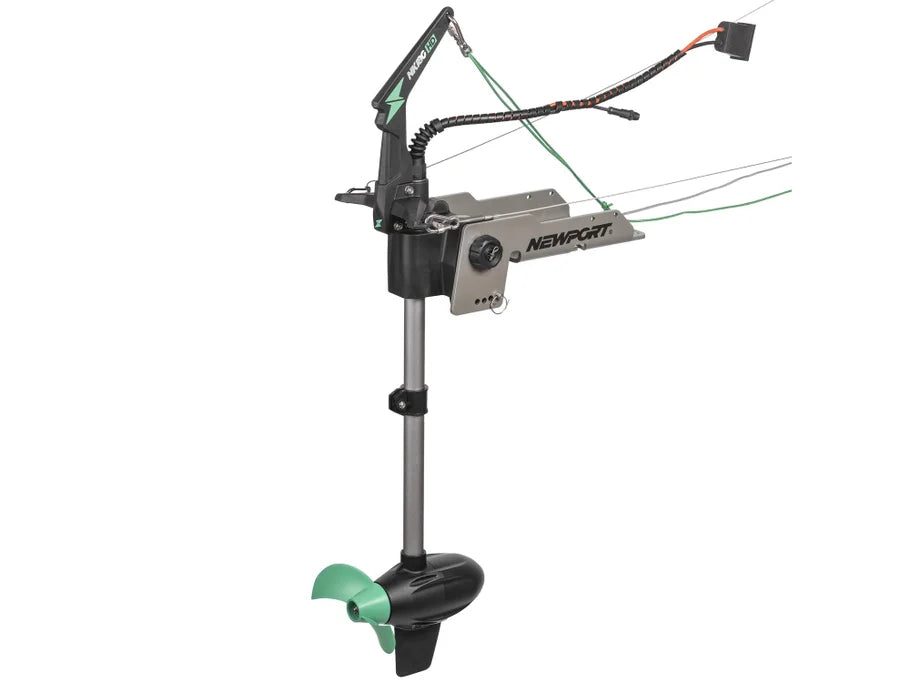

Newport NK180 HD Electric Kayak Motor

Newport NK180 HD Electric Kayak Motor

Regular price $1,299.99 USD
Regular price Sale price $1,299.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock

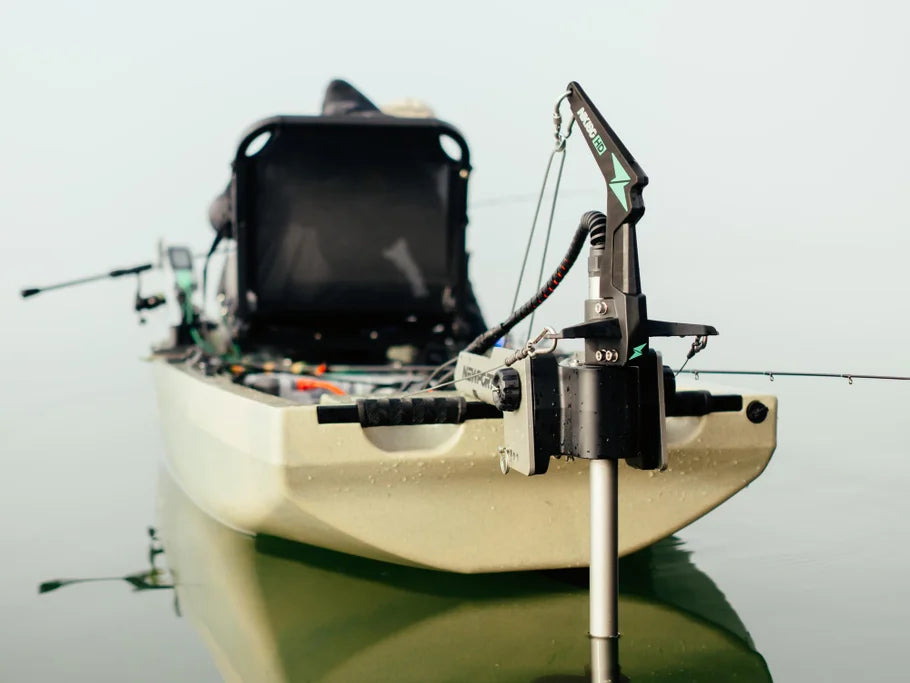

The NK180 HD by Newport Vessels is the latest generation of high performance electric kayak motors. This 600 watt motor produces the equivalent of 1.8 horsepower.

The HD series combines rugged composite materials, updated architecture for easier lifting and more responsive steering, precision bearings for smoother feel, overbuilt cables and connections for longevity, a redesigned pulley system for less pulling strain and longer cable life, and advanced conformal-coated internal electronics engineered for maximum reliability.

Designed specifically for avid kayakers, it delivers reliable brushless performance without compromise. And amazingly, it weighs only 14 pounds.

Includes

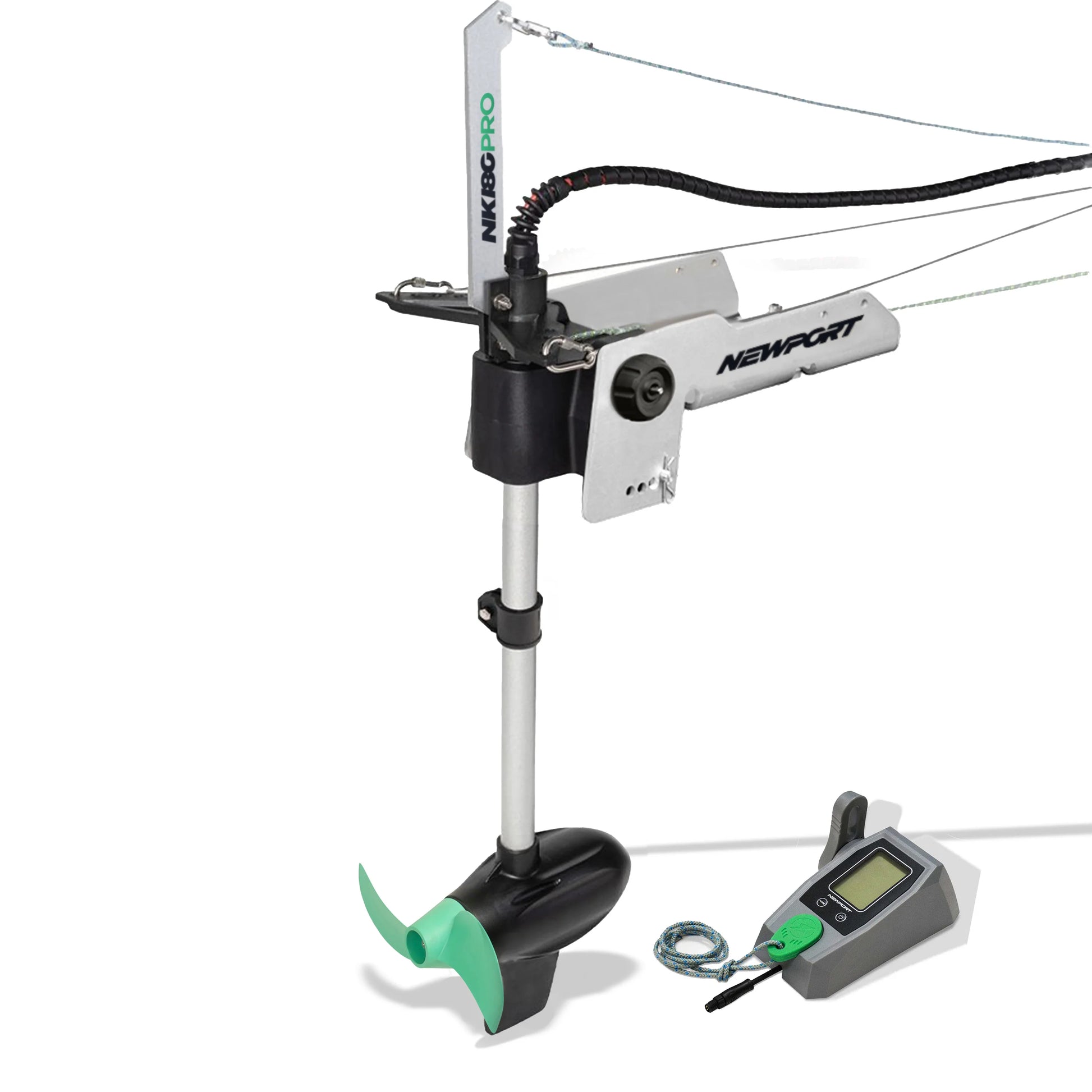

  • NK180 HD motor

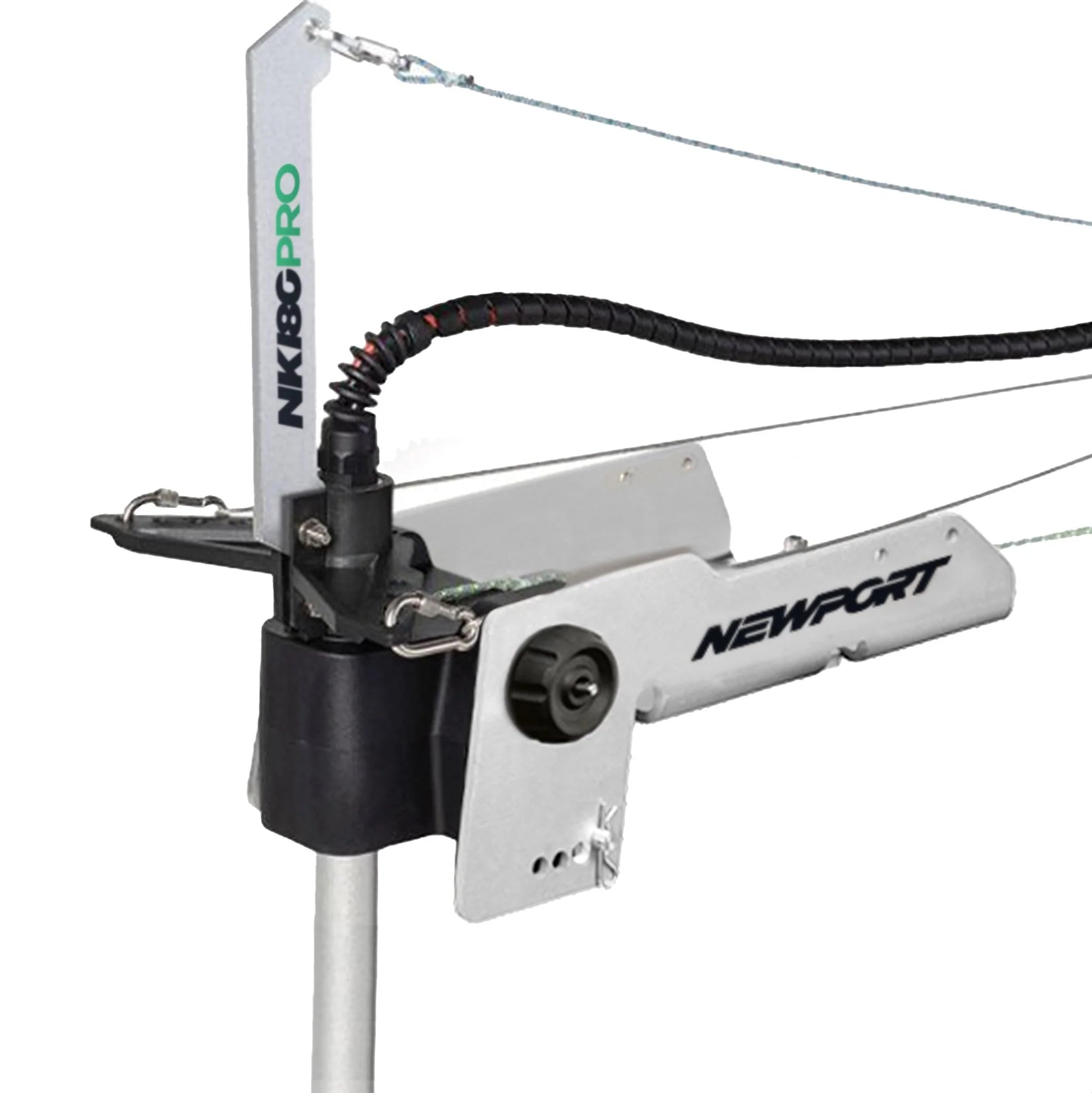

  • NK HD Steering Triangle

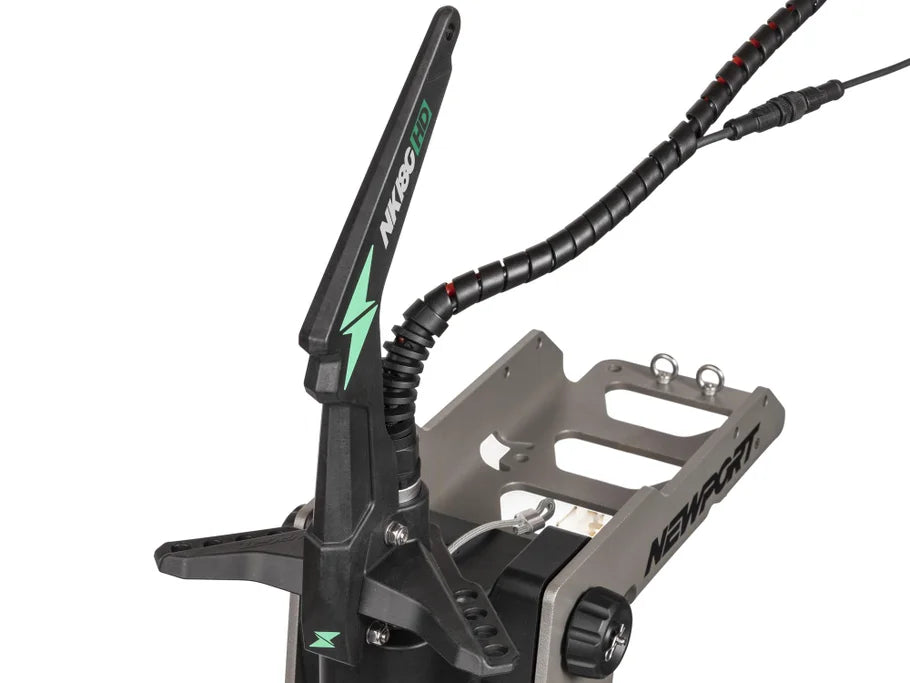

  • NK HD Retract Arm w/ Stainless Carabiner + Ronstan micro block
  • NK HD Communication Cable with oversized M12 connectors

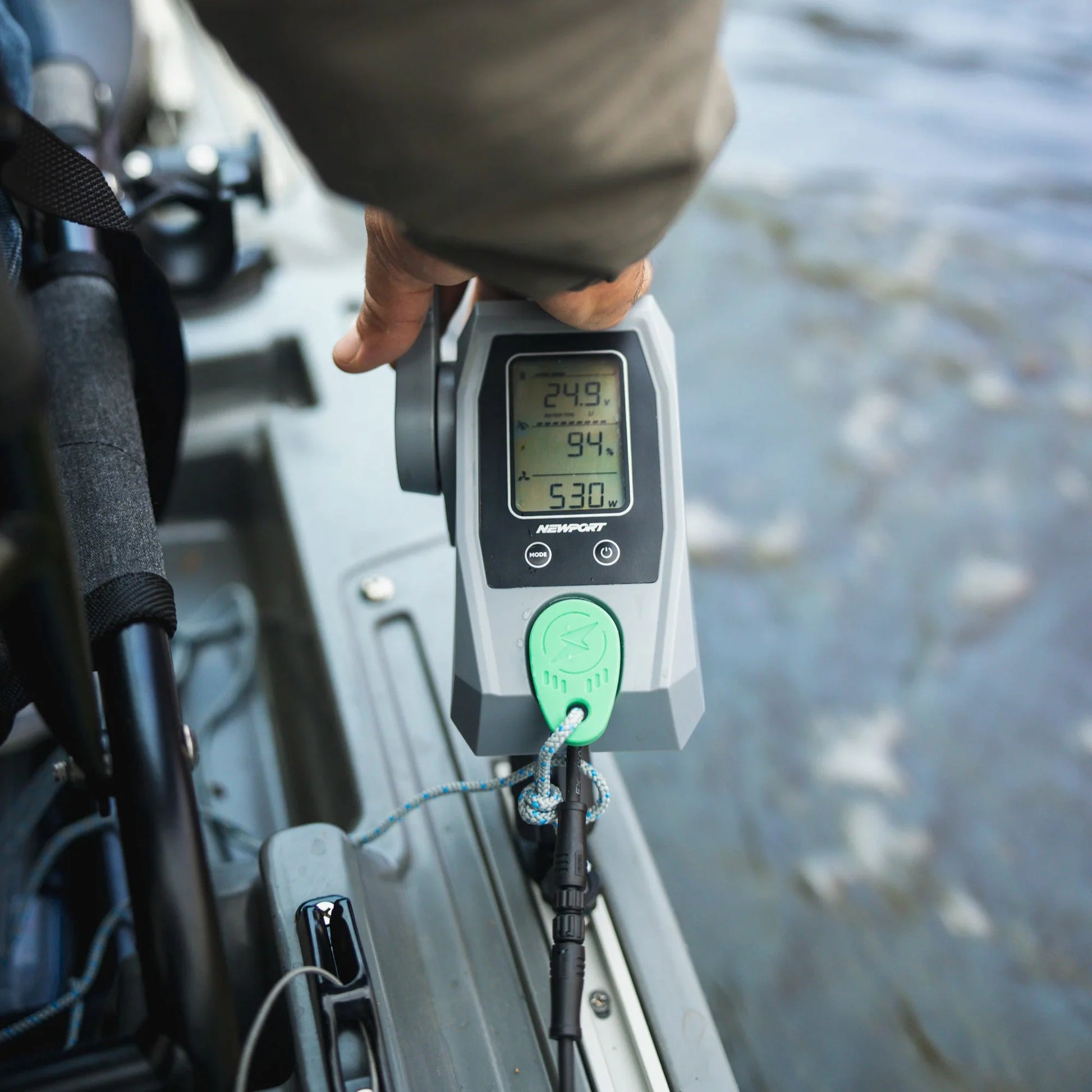

  • NK HD Digital Speed Controller w/ Display

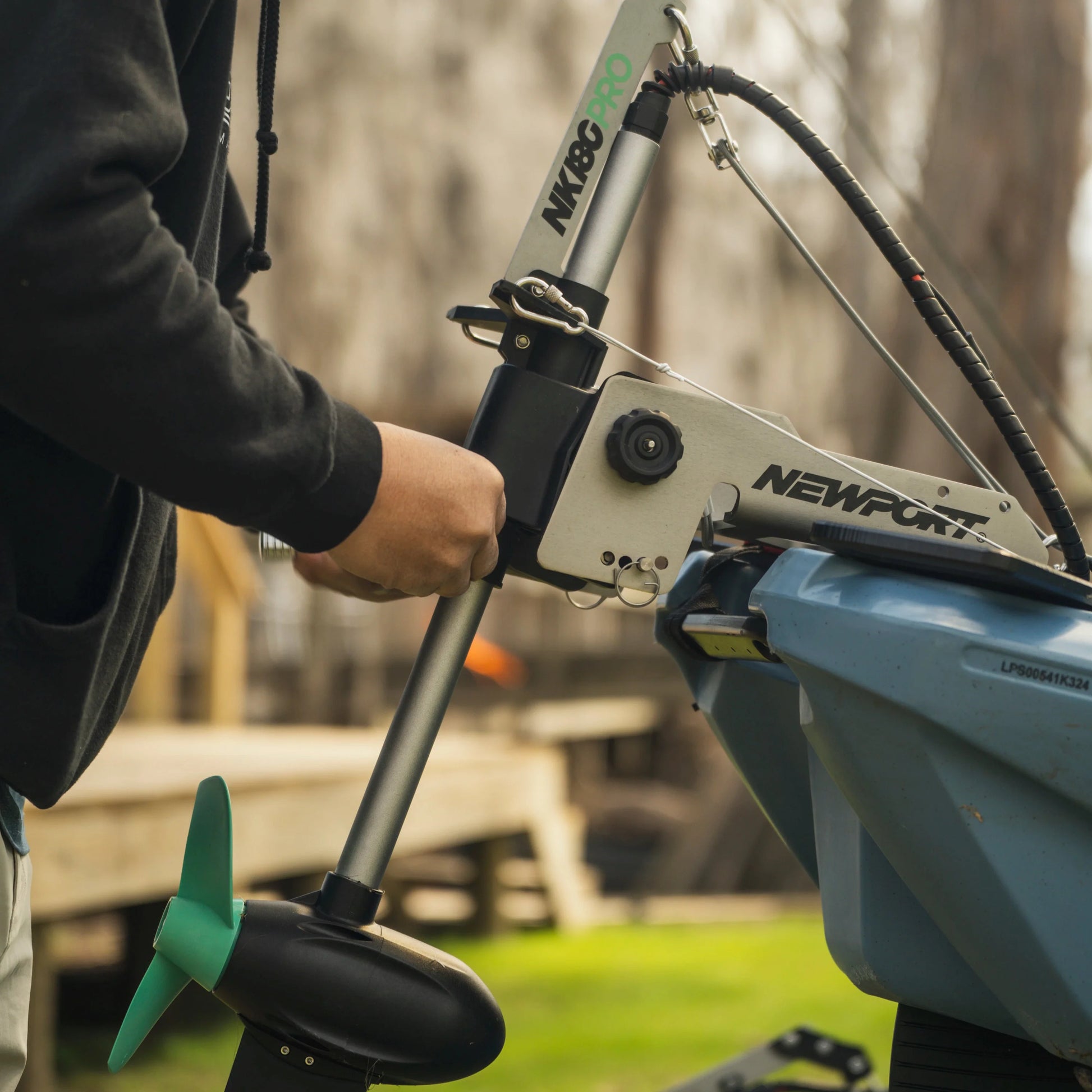

  • Four Bolt Aluminum Motor Mounting bracket
  • Height Adjustment Clamp
  • Reverse Control Line and Handle
  • Motor Lift Control Line and Handle
  • Emergency Stop Key
  • (2) Carabiner and pulley sets for rigging options
  • Additional nylon cord
  • Coated Stainless Steering Cable Kit (may not be compatible w/every brand of kayak)
  • Hardware installation kit with required tool

Battery is sold separately. Consult with an expert at NES to learn about your battery, layout, and wiring options.

2 Year Limited Warranty with support from us (NES).

Features

  • Most versatile NK HD (1.8HP/600W)

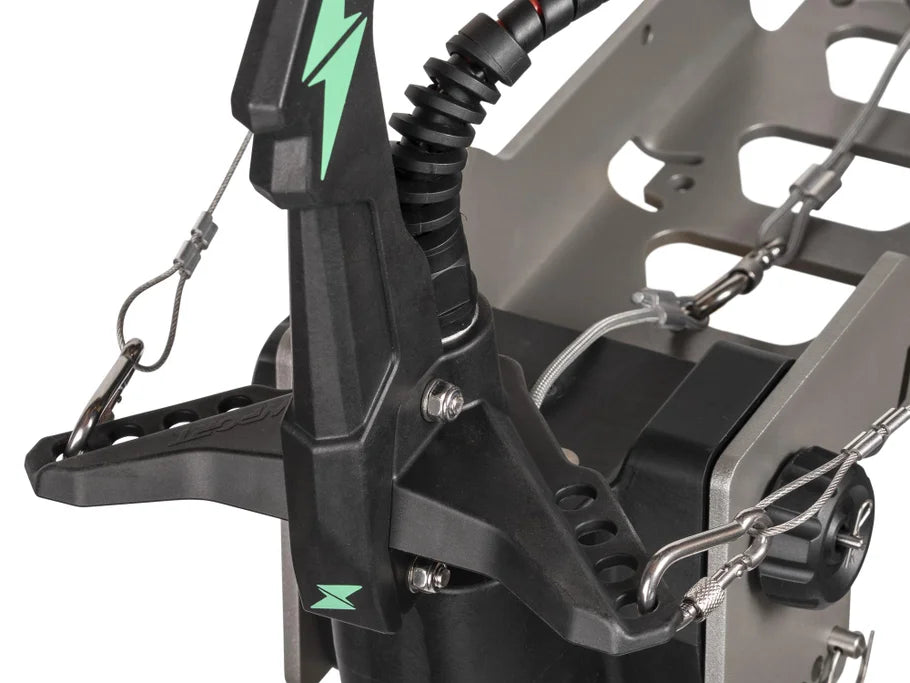

  • Reinforced steering/retract system
  • HD communication cable connectors
  • Brushless direct drive
  • Newport battery system compatibility
  • Compact anodized Ronstan® block
  • Cable strain relief mechanism
  • Conformal-coated electronics

Specifications

  • POWER: 600W (1.8 HP EQUIVALENT)
  • INPUT VOLTAGE: 24V
  • AMP DRAW: 25 AMPS
  • MOTOR WEIGHT: 14.3lbs
  • Shaft Length: 21.7"
  • EXTERNAL BATTERY: YES

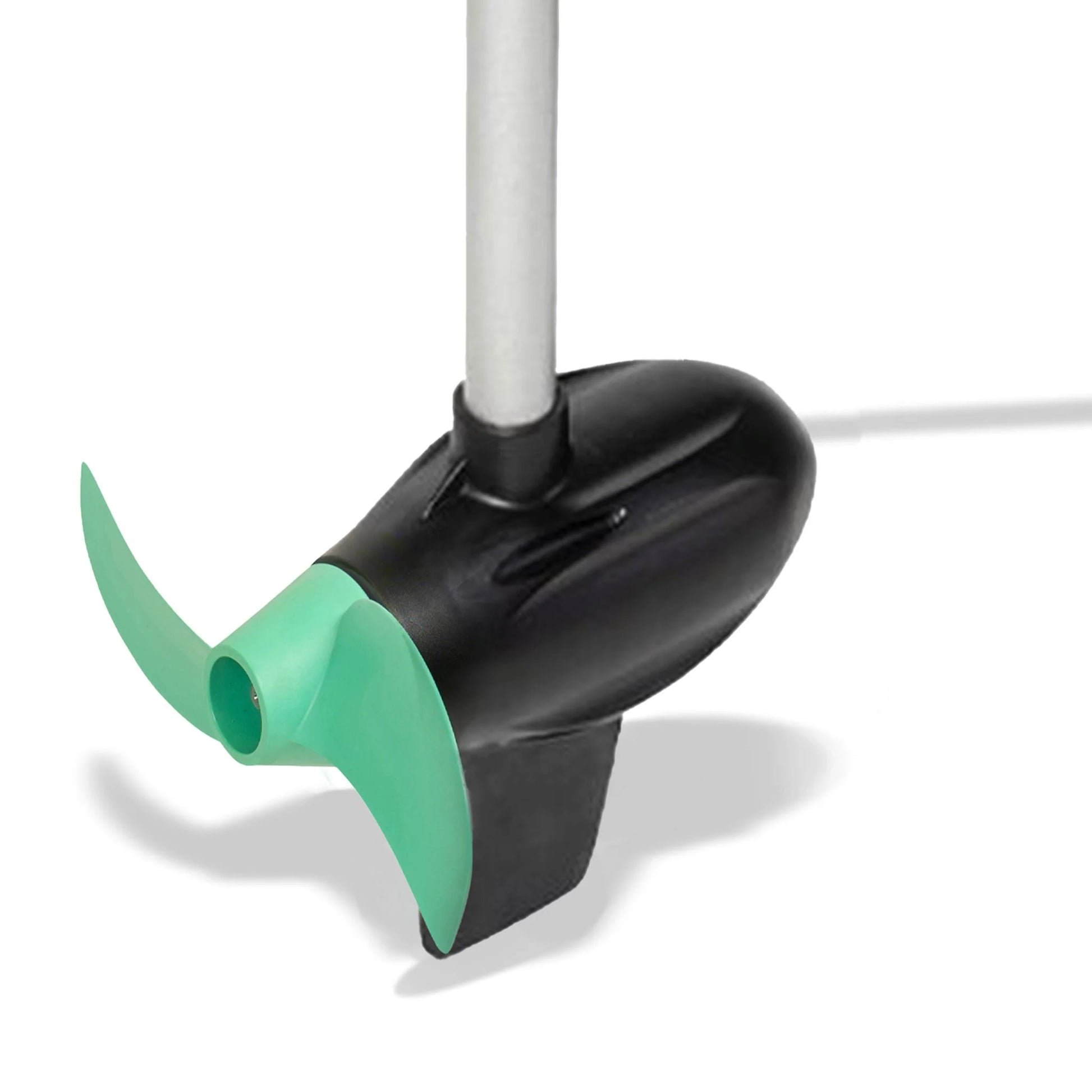

  • PROPELLER: 7.5” Diameter
  • TRIM/TILT ANGLE: 10°, 20°, 30°
  • MOTOR: BRUSHLESS DC MOTOR
  • DIRECT DRIVE: YES
  • MAINTENANCE-FREE: YES
  • LOWER MOTOR LENGTH: 8.7"
  • LOWER MOTOR SIZE: 4"

NES provides layout and rigging services including electric outboard installation. We welcome you to consult with us on your vision to get things started.
