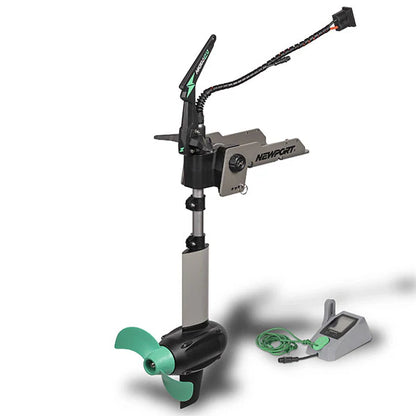

Newport NK300 HD Electric Kayak Motor

The NK300 HD electric kayak motor is the next generation of high performance, foot-steered motorized propulsion. Built on a heavy duty durability standard, the NK300 HD combines rugged composite materials, updated architecture from its 'PRO' predecessor, precision bearings and overbuilt communication cable plugs - all as standard equipment.

Designed specifically for bigger water kayak anglers and adventurists, the NK300 HD delivers 1300W of reliable brush-less direct drive power with unmatched speed and thrust. Trusted and proven on the water, this motor was built to explore large swaths of water with power and efficiency.

Includes

• NK300 HD motor

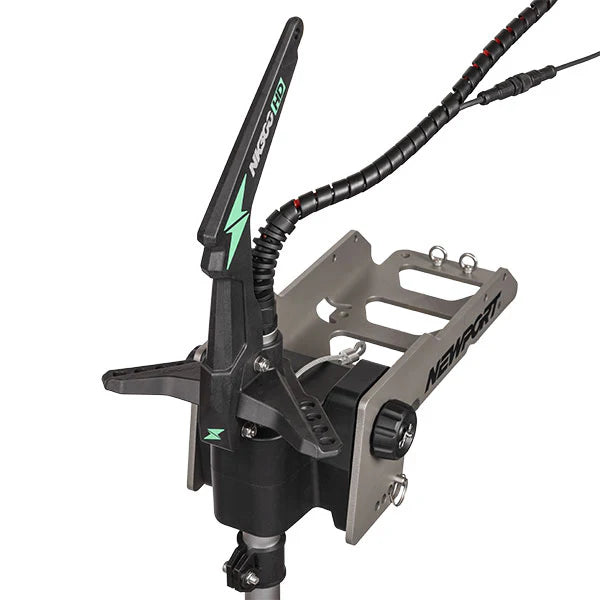

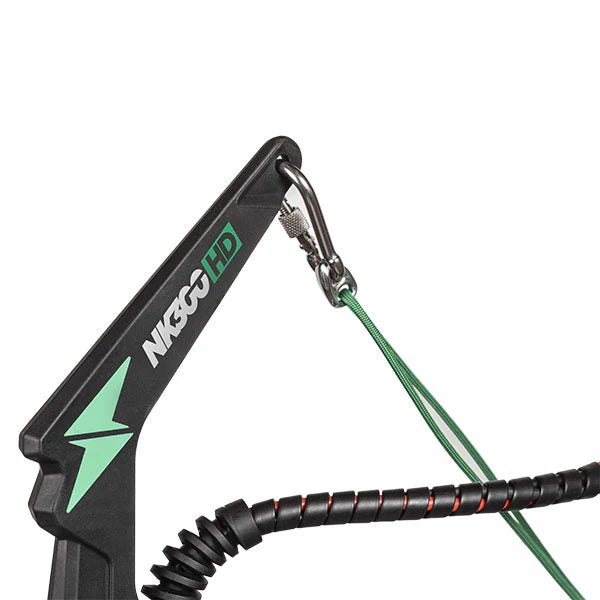

• NK HD Steering Triangle
• NK HD Retract Arm w/ Stainless Carabiner + Ronstan micro block
• NK HD Communication Cable with oversized M12 connectors
• NK HD Digital Speed Controller w/ Display

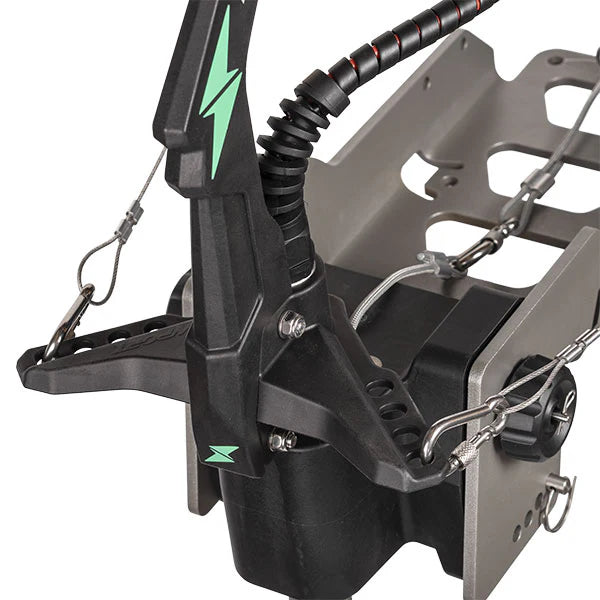

• Four Bolt Aluminum Motor Mounting bracket
• Height Adjustment Clamp
• Reverse Control Line and Handle
• Motor Lift Control Line and Handle
• Emergency Stop Key
• (2) Carabiner and pulley sets for rigging options
• Additional nylon cord
• Coated Stainless Steering Cable Kit (may not be compatible w/ every brand of kayak)
• Installation Kit with required tools

Battery is sold separately. Consult with an expert at NES to learn about your battery, layout, and wiring options.

2 Year Limited Warranty with support from us (NES).

Features

• Fastest NK HD (3HP/1300W)
• Reinforced steering/retract system
• HD communication cable connectors
• Brushless direct drive
• Newport battery system compatibility
• Compact anodized Ronstan® block
• Cable strain relief mechanism
• Conformal-coated electronics

Specifications

• Power: 1300W (3HP equivalent)
• Input Voltage: 36V DC
• Amp Draw: 37 amps
• Motor Weight: 25.5 lbs
• External Battery: 36V DC 30 Ah minimum
• Propeller: 9.8" 2-blade composite propeller
• Trim/Tilt Angle: 0°, 7°, 14°, 21° / 70°
• Shaft Length: 21.7"
• Motor: Brushless DC motor
• Direct Drive: Yes
• Maintenance-Free: Yes
• Sound Level: 40 decibels (out of water)
• Length of lower motor: 9.25"
• Diameter of lower motor: 4.5"

NES provides layout and rigging services including electric outboard installation. We welcome you to consult with us on your vision to get things started.
